Package com.jeantessier.dependency

Build forests of packages, classes, and features and their dependencies.

See:
Description

Interface Summary

DependencyListener
SelectionCriteria
TraversalStrategy
Visitor

Class Summary

AndCompositeSelectionCriteria
ClassNode
ClosureInboundSelector
ClosureLayerSelector
ClosureOutboundSelector
ClosureSelector
ClosureStartSelector
ClosureStopSelector
CodeDependencyCollector	Traverses a Classfile and extracts dependencies from its code.
CollectionSelectionCriteria
CompositeSelectionCriteria
ComprehensiveSelectionCriteria
DecoratorTraversalStrategy
DependencyEvent
FeatureNode
GraphCopier
GraphSummarizer
LinkMaximizer
LinkMinimizer
MetricsGatherer
MetricsReport
Node
NodeFactory
NodeHandler
NodeLoader
NullSelectionCriteria
OrCompositeSelectionCriteria
PackageNode
Printer
RegularExpressionSelectionCriteria
SelectiveTraversalStrategy
SortedTraversalStrategy
TextPrinter
TransitiveClosure	Creates a sub-graph of Nodes based on a scope and filtering rules.
TransitiveClosureEngine
VisitorBase	This is a basic implementation of Visitor.
XMLPrinter

Package com.jeantessier.dependency Description

Build forests of packages, classes, and features and their dependencies. Each node can cross-reference other nodes in the forest, according to dependencies within the code.

Here are the core abstractions. At the code are Node and its subclasses. The NodeFactory creates Node instances. The Visitor implementations traverse dependency graphs and perform custom operations. For instance, the GraphSummarizer is used to perform queries and the Printer subclasses do textual rendering.

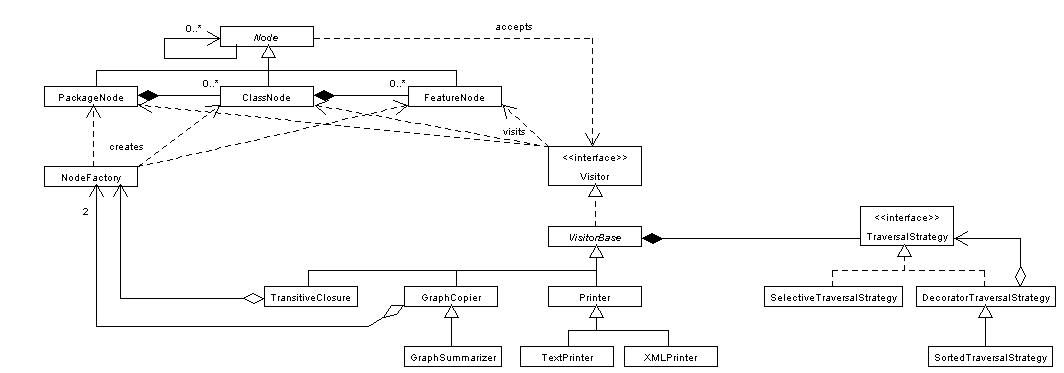

Visitors

CodeDependencyCollector traverses .class files and builds the dependency graph along the way, using a NodeFactory.

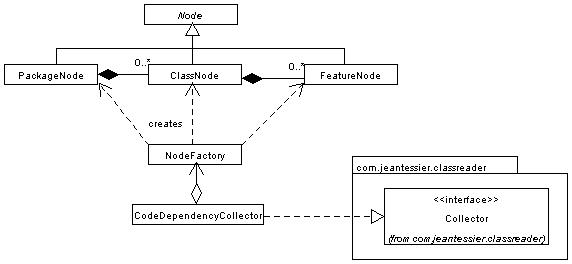

CodeDependencyCollector

Another way to build a dependency graph is to load one that was saved to an XML document. Dependency Finder uses SAX in the form of NodeLoader and NodeHandler. The latter, again, uses a NodeFactory to build the actual in memory representation.

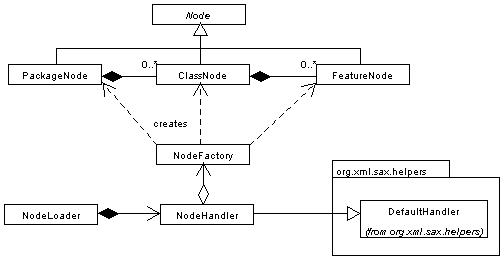

SAX
